CDN and Serving

Every uploaded image gets a permanent CDN URL. Images are served from Cloudflare's edge network with on-demand transformations and aggressive caching.

URL Formats

Two URL formats are supported. Both work identically.

Full Path Format

https://cdn.example.com/{owner}/{album}/{filename}
https://cdn.example.com/{owner}/{album}/{filename}/{variant}

Example:

https://cdn.example.com/alice/vacation/sunset.jpg
https://cdn.example.com/alice/vacation/sunset.jpg/w1024

Short ID Format

https://cdn.example.com/i/{id}
https://cdn.example.com/i/{id}/{variant}

Example:

https://cdn.example.com/i/abc123
https://cdn.example.com/i/abc123/w1024

Short IDs are 6 characters. The /i/ prefix distinguishes them from album paths.

Custom Domains

If you have a custom domain configured, URLs are simplified:

https://cdn.yourdomain.com/{album}/{filename}
https://cdn.yourdomain.com/{id}

No owner prefix needed since the domain is tied to your account. See Custom Domains for setup.

---

Variants

Variants are pre-defined transformations. Request them by appending to the URL path.

Preset Variants

Variant	Description
original	No transformation (default)
w128, w256, w512, w1024, w1536, w2048	Width-constrained, height scales proportionally
thumb	128x128 square thumbnail
og-image	1200x630 social media card

Example:

<img src="https://cdn.example.com/i/abc123/w1024" alt="Photo" />

Preset variants are generated on first request and cached permanently. No rate limiting.

Config: packages/config/src/image-variants.ts

---

Custom Transformations

Beyond presets, you can apply custom transformations via query parameters.

Basic Usage

<img src="https://cdn.example.com/i/abc123?w=400&h=300&fit=cover&q=85" alt="Custom" />

Available Parameters

Dimensions:

Param	Description	Range
w	Width in pixels	1-9999
h	Height in pixels	1-9999
fit	Resize mode	scale-down, contain, cover, crop, pad

Quality and Format:

Param	Description	Values
q	Quality	1-100 (default 85)
f	Output format	auto, avif, webp, jpeg, png

Positioning:

Param	Description	Values
g	Gravity/focus point	auto, center, face, left, right, top, bottom

Effects:

Param	Description	Range
blur	Blur radius	1-250
sharpen	Sharpen amount	1-10
br	Brightness	0.5-2.0
co	Contrast	0.5-2.0
sat	Saturation	0-2.0
gam	Gamma	0.5-2.0

Transformations:

Param	Description	Values
r	Rotation	0, 90, 180, 270
flip	Flip	h, v, hv
bg	Background color	6-digit hex without #

Examples

Square thumbnail with blur:

<img src="https://cdn.example.com/i/abc123?w=200&h=200&fit=cover&blur=10" />

High quality WebP:

<img src="https://cdn.example.com/i/abc123?w=1200&f=webp&q=95" />

Enhanced portrait:

<img src="https://cdn.example.com/i/abc123?w=800&sharpen=5&sat=1.2&br=1.1" />

Rate Limiting

Custom transformations are rate-limited to prevent abuse:

• 10 new custom variants per minute per IP
• Max 100 custom variants per image total
• Once cached, unlimited access to that exact variant

Config: packages/config/src/custom-transform-params.ts

---

Embed Codes

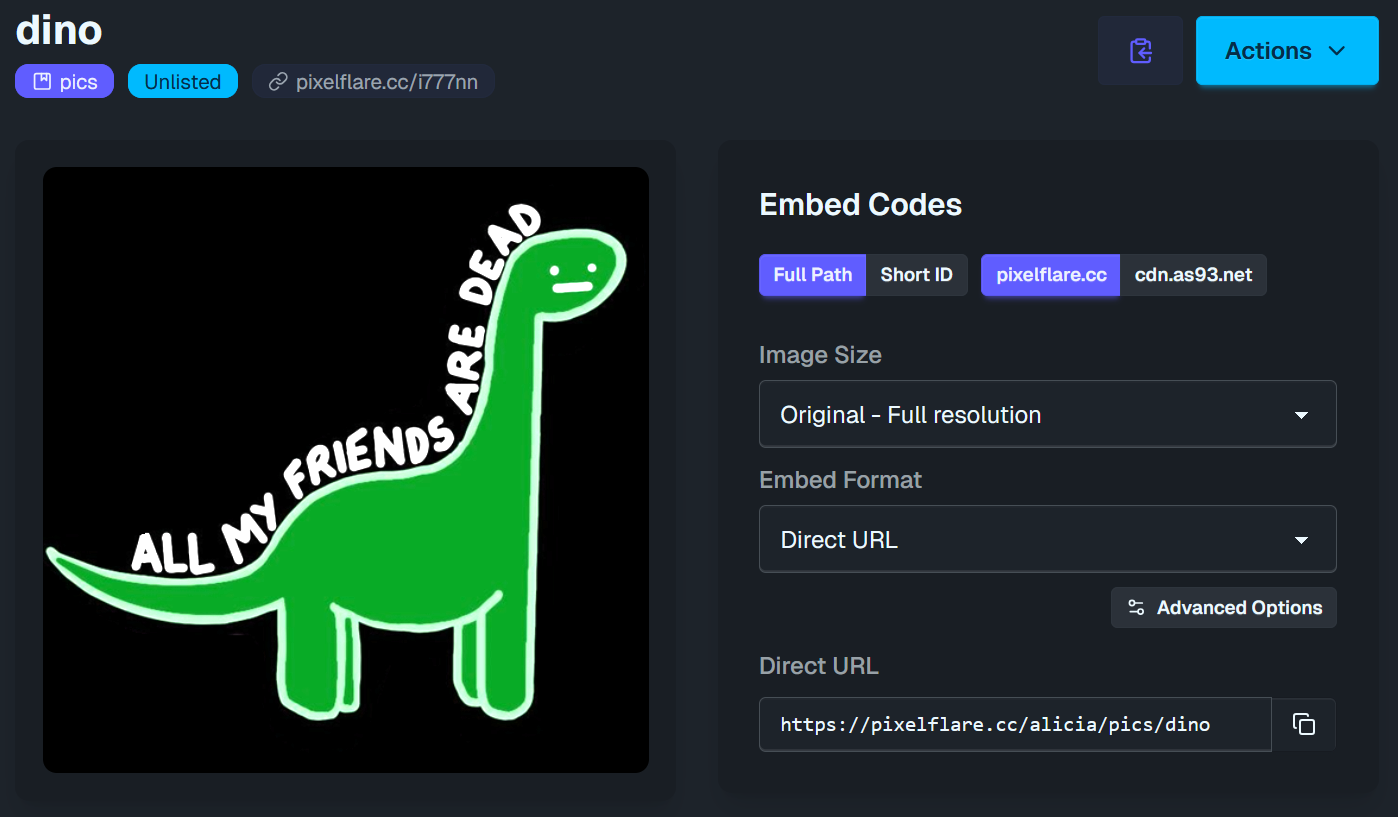

The UI generates embed codes in many formats. Go to any image and click "Embed" to get copy-paste snippets.

Supported Formats

Format	Use Case
Direct URL	Anywhere
Markdown	GitHub, Reddit, docs
HTML <img>	Basic embedding
HTML <picture>	Responsive with srcset
HTML <figure>	With caption
BBCode	Forums
JSX/React	React apps
Next.js <Image>	Next.js apps
Hugo, Jekyll	Static site generators
AMP	AMP pages
LaTeX	Documents
Confluence, MediaWiki	Wikis

Responsive Images

For responsive layouts, use srcset:

<img
  src="https://cdn.example.com/i/abc123/w800"
  srcset="
    https://cdn.example.com/i/abc123/w512   512w,
    https://cdn.example.com/i/abc123/w800   800w,
    https://cdn.example.com/i/abc123/w1600 1600w
  "
  sizes="(max-width: 768px) 100vw, 800px"
  alt="Responsive image"
  loading="lazy"
/>

Or use <picture> for format negotiation:

<picture>
  <source type="image/avif" srcset="https://cdn.example.com/i/abc123?f=avif&w=800" />
  <source type="image/webp" srcset="https://cdn.example.com/i/abc123?f=webp&w=800" />
  <img src="https://cdn.example.com/i/abc123/w800" alt="Image with format fallback" />
</picture>

Custom Domain in Embeds

You can configure whether embed codes use your custom domain or the default CDN host. Toggle this in Settings > Embed Preferences.

Frontend: packages/frontend/src/lib/components/image-details/EmbedCodesSection.svelte

---

Caching

All images are cached aggressively at the edge.

Content	Cache-Control
Original images	public, max-age=31536000, immutable (1 year)
Generated variants	public, max-age=31536000, immutable (1 year)
Encrypted images	private, max-age=300 (5 minutes)
404 responses	public, max-age=300 (5 minutes)

Variants are generated on first request, stored in R2, then served from cache on subsequent requests.

Config: packages/config/src/headers.ts

---

CORS

The CDN allows cross-origin requests from any domain:

Access-Control-Allow-Origin: *
Access-Control-Allow-Methods: GET, HEAD, OPTIONS
Access-Control-Allow-Headers: Content-Type, Authorization
Access-Control-Max-Age: 86400

This means you can embed images on any website and fetch them via JavaScript without CORS errors.

---

Private Images

Images marked as private require authentication. The CDN checks for a valid session before serving.

For programmatic access to private images, use an API token with read scope:

curl -H "Authorization: Bearer your-token" \
  https://cdn.example.com/i/abc123

---

Encrypted Images

End-to-end encrypted images require an access token in the URL:

https://cdn.example.com/i/abc123?token=eyJ...

The token contains the decryption key. Without it, the server returns encrypted bytes that are useless without the key.

Encrypted images are cached with private cache control to prevent CDN from serving decrypted content to unauthorized users.

See Encryption for details.

---

SVG Handling

SVG images are served as-is without transformation. Variants are ignored since SVGs are vector graphics that scale natively.

---

Analytics

Every image serve is logged with:

• Country (from CF-IPCountry header)
• Bytes transferred
• Variant requested
• Timestamp

View stats in the dashboard or via API. See Analytics.

---

File Reference

Purpose	File
CDN routes	packages/api/src/routes/cdn.ts
Core serving logic	packages/api/src/routes/cdn/core-serving.ts
Custom transforms	packages/api/src/routes/cdn/custom-transforms.ts
Variant config	packages/config/src/image-variants.ts
Transform params	packages/config/src/custom-transform-params.ts
Cache headers	packages/config/src/headers.ts
Embed code utils	packages/frontend/src/lib/utils/embedCodes.ts
